What is a Bell Curve? Definition and Physical Meaning
A bell curve - formally called the normal distribution or Gaussian distribution - is a continuous probability distribution that produces a symmetric, bell-shaped graph when plotted. It is the most important distribution in all of statistics, arising naturally in virtually every scientific and engineering domain.
The curve is defined by exactly two parameters: the mean (\(\mu\)), which sets the centre (peak), and the standard deviation (\(\sigma\)), which controls how spread out the bell is. The total area beneath the curve always equals 1 (100%), representing all probabilities.
The bell curve was first analysed by Carl Friedrich Gauss (1809) in the context of astronomical measurement errors, and independently by Abraham de Moivre (1733) as a limit of the binomial distribution. Pierre-Simon Laplace formalised its role in the Central Limit Theorem - the theorem explaining why the bell curve appears universally in nature.

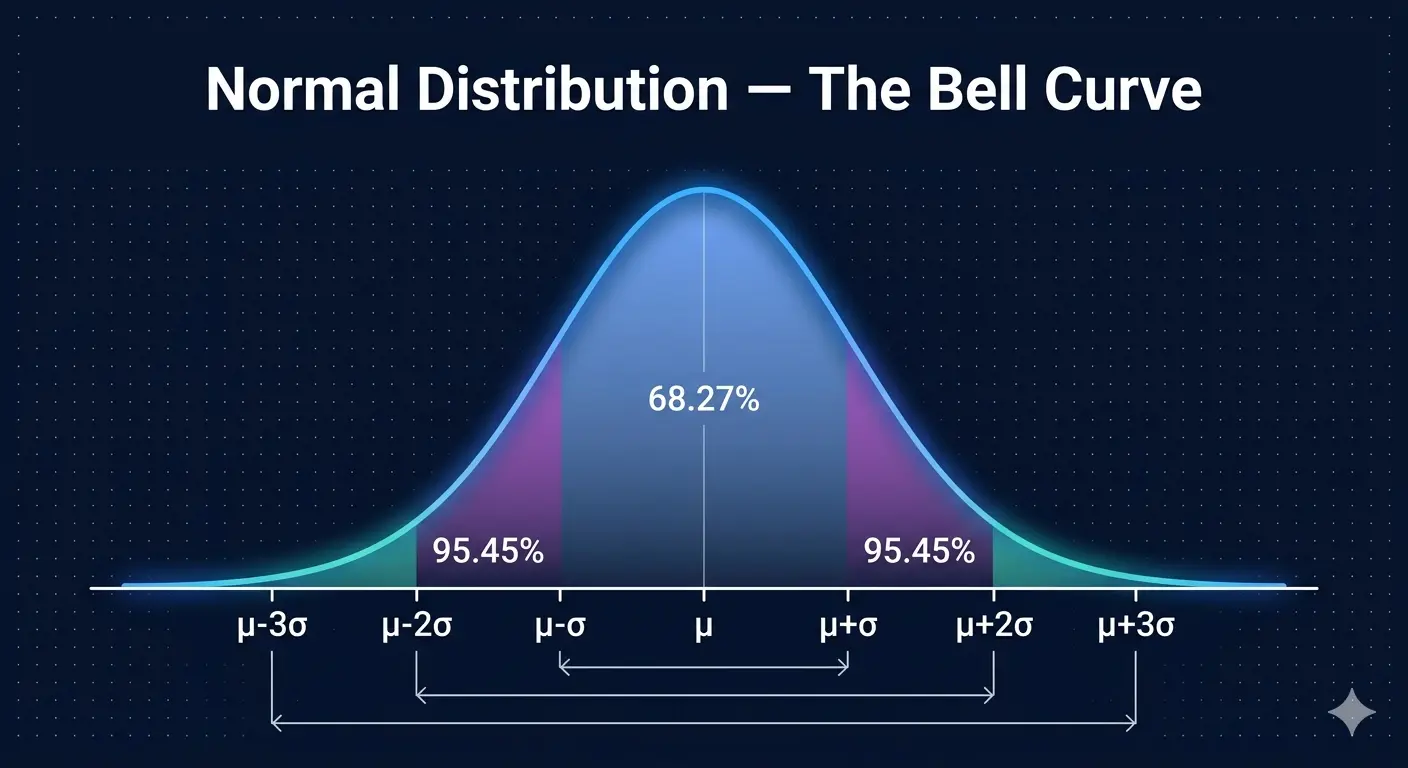

Figure 1: The bell curve showing mean μ, standard deviation bands ±1σ, ±2σ, ±3σ, and the cumulative probability areas.
Central Limit Theorem - why bell curves appear everywhere: The CLT states that if you take sufficiently large random samples from any population and compute the sample means, those means will form an approximately normal distribution - regardless of the original population's shape. This is why natural phenomena that are the sum of many small independent influences (height, weight, IQ, exam scores, measurement errors) follow a bell curve.
| Property | Value / Description | Engineering / Statistical Significance |
|---|---|---|
| Shape | Symmetric, unimodal bell | Mean = Median = Mode; symmetric about the peak |
| Mean (\(\mu\)) | Any real number | Locates centre; shifts curve left or right |
| Standard Deviation (\(\sigma\)) | Any positive real | Controls spread - large \(\sigma\) = wide flat bell; small \(\sigma\) = narrow tall bell |
| Skewness | 0 (perfectly symmetric) | Any asymmetry signals departure from normality |
| Kurtosis (excess) | 0 (mesokurtic) | Measures tail heaviness relative to normal |
| Inflection points | At \(\mu \pm \sigma\) | Visually identifiable concavity-change points |
| Range | \(-\infty\) to \(+\infty\) | Theoretically unbounded; 99.99% of data lies within \(\pm 4\sigma\) |
Bell Curve Formula: Probability Density Function and Derivation
The mathematical equation that produces the bell-shaped curve is the probability density function (PDF) of the normal distribution. It gives the relative likelihood for every possible value of the random variable \(x\).
\(\mu\) = population mean | \(\sigma\) = population standard deviation | \(e \approx 2.71828\) | \(\pi \approx 3.14159\).
The term \(\tfrac{1}{\sigma\sqrt{2\pi}}\) is the normalisation constant ensuring total area = 1.
NORM.DIST, or Python scipy.stats.norm.cdf. Use our Normal Distribution Graph Generator to visualise any μ and σ instantly.
Why the exponent is \(-\frac{(x-\mu)^2}{2\sigma^2}\): The squared term keeps the exponent always ≤ 0, so \(e^{(\cdot)}\) is always ≤ 1. At \(x = \mu\) the exponent is 0, giving the peak \(f(\mu) = 1/(\sigma\sqrt{2\pi})\). As \(x\) moves away, the exponent becomes more negative and \(f(x)\) decreases symmetrically. The \(2\sigma^2\) denominator controls decay speed - larger \(\sigma\) = slower decay = wider bell.
Key Properties of the Bell Curve
1. Symmetry - Mean = Median = Mode
The curve is perfectly symmetric about \(x = \mu\): \(f(\mu+a) = f(\mu-a)\). Mean, median, and mode all coincide at the peak.
2. Unimodal - Single Peak
Exactly one maximum at \(x = \mu\) with value \(f(\mu) = 1/(\sigma\sqrt{2\pi})\). Larger \(\sigma\) gives a lower broader peak; smaller \(\sigma\) gives a taller narrower peak; total area always = 1.
3. Inflection Points at \(\mu \pm \sigma\)
The curve changes concavity at exactly \(x = \mu \pm \sigma\) - visually identifiable and useful to estimate \(\sigma\) directly from a drawn curve.
4. Asymptotic Tails
The curve never touches the horizontal axis. Over 99.99% of data lies within \(\pm 4\sigma\); values beyond \(\pm 5\sigma\) occur less than 1 in 3.5 million observations.
5. Reproductive Property
If \(X \sim N(\mu_X,\sigma_X^2)\) and \(Y \sim N(\mu_Y,\sigma_Y^2)\) are independent, then \(aX + bY \sim N(a\mu_X+b\mu_Y,\; a^2\sigma_X^2+b^2\sigma_Y^2)\). Essential for engineering reliability and measurement uncertainty (GUM).
| Property | Mathematical Statement | Practical Interpretation |
|---|---|---|
| Mean = Median = Mode | \(\mu = \text{median} = \text{mode}\) | Only true for perfectly symmetric distributions |
| Total probability | \(\int_{-\infty}^{\infty} f(x)\,dx = 1\) | Integrate the curve - don't read height as probability |
| Inflection points | \(x = \mu \pm \sigma\) | Where curve changes from opening-down to opening-up |
| Peak height | \(f(\mu) = 1/(\sigma\sqrt{2\pi})\) | Higher for small \(\sigma\), lower for large \(\sigma\) |
| Entropy | \(H = \tfrac{1}{2}\ln(2\pi e\sigma^2)\) | Maximum entropy among all distributions with given μ and σ |
| Closure under addition | Sum of independent normals is normal | Foundation of portfolio theory, structural reliability, GUM uncertainty |
The Empirical Rule: 68-95-99.7 Explained
The empirical rule (three-sigma rule or 68-95-99.7 rule) is the most practically useful summary of the normal distribution. It tells you immediately what fraction of data lies within 1, 2, or 3 standard deviations of the mean - no table lookup needed.
Worked Example: IQ Scores (μ = 100, σ = 15)
- 68.27% of people have IQ between 85 and 115 (\(100 \pm 15\))
- 95.45% have IQ between 70 and 130 (\(100 \pm 30\))
- 99.73% have IQ between 55 and 145 (\(100 \pm 45\))
- IQ 145 (\(= \mu + 3\sigma\)) is in the top 0.135% - about 1 in 740 people
- IQ 160 (\(\approx \mu + 4\sigma\)) is in the top 0.003% - about 1 in 31,500 people
Z-Score: Standard Score Formula, Table & Worked Example
The Z-score (standard score) measures how many standard deviations a data point is above or below the mean. It converts any normal distribution to the standard normal (μ=0, σ=1), enabling use of a single universal probability table.
\(z = 0\): value equals the mean. \(z = +2\): value is 2 SDs above mean. \(z = -1.5\): 1.5 SDs below mean.
Use our Z-Score Calculator for instant results without manual table lookup.
Figure 2: Z-score reference table - cumulative probabilities P(Z < z) and percentile ranks for the standard normal distribution.
| Z-Score | P(Z < z) | Percentile | Meaning |
|---|---|---|---|
| -3.0 | 0.0013 | 0.13th | Only 0.13% of values fall below this |
| -2.0 | 0.0228 | 2.28th | About 1 in 44 values are below this |
| -1.0 | 0.1587 | 15.87th | About 1 in 6 values are below this |
| 0.0 | 0.5000 | 50th | Mean - half above, half below |
| +1.0 | 0.8413 | 84.13th | About 5 in 6 values are below this |
| +1.645 | 0.9500 | 95th | One-sided 95% confidence critical value |
| +1.960 | 0.9750 | 97.5th | Two-tailed 95% confidence interval critical value |
| +2.576 | 0.9950 | 99.5th | Two-tailed 99% confidence interval critical value |
| +3.0 | 0.9987 | 99.87th | Only 0.13% of values exceed this |
Worked Example: Bolt Diameter Quality Control
Problem: Steel bolts have diameter \(\mu = 10.00\) mm, \(\sigma = 0.05\) mm. Specification: 9.90 to 10.10 mm. What fraction is within spec?
Upper Z: \(z_{upper} = (10.10 - 10.00)/0.05 = +2.00\)
Lower Z: \(z_{lower} = (9.90 - 10.00)/0.05 = -2.00\)
Within spec: \(P(-2 \leq Z \leq +2) = \Phi(2.00) - \Phi(-2.00) = 0.9772 - 0.0228 = \mathbf{95.44\%}\)
To cut the 4.56% reject rate to 0.27%, reduce \(\sigma\) to 0.033 mm (\(\pm 3\sigma\) within tolerance). Try our Normal Distribution Calculator to explore different scenarios instantly.
Bell Curve Examples in Real Life
The bell curve appears throughout nature, society, and engineering whenever a quantity results from many small, independent contributing factors. The following are well-documented, quantitative real-world examples.

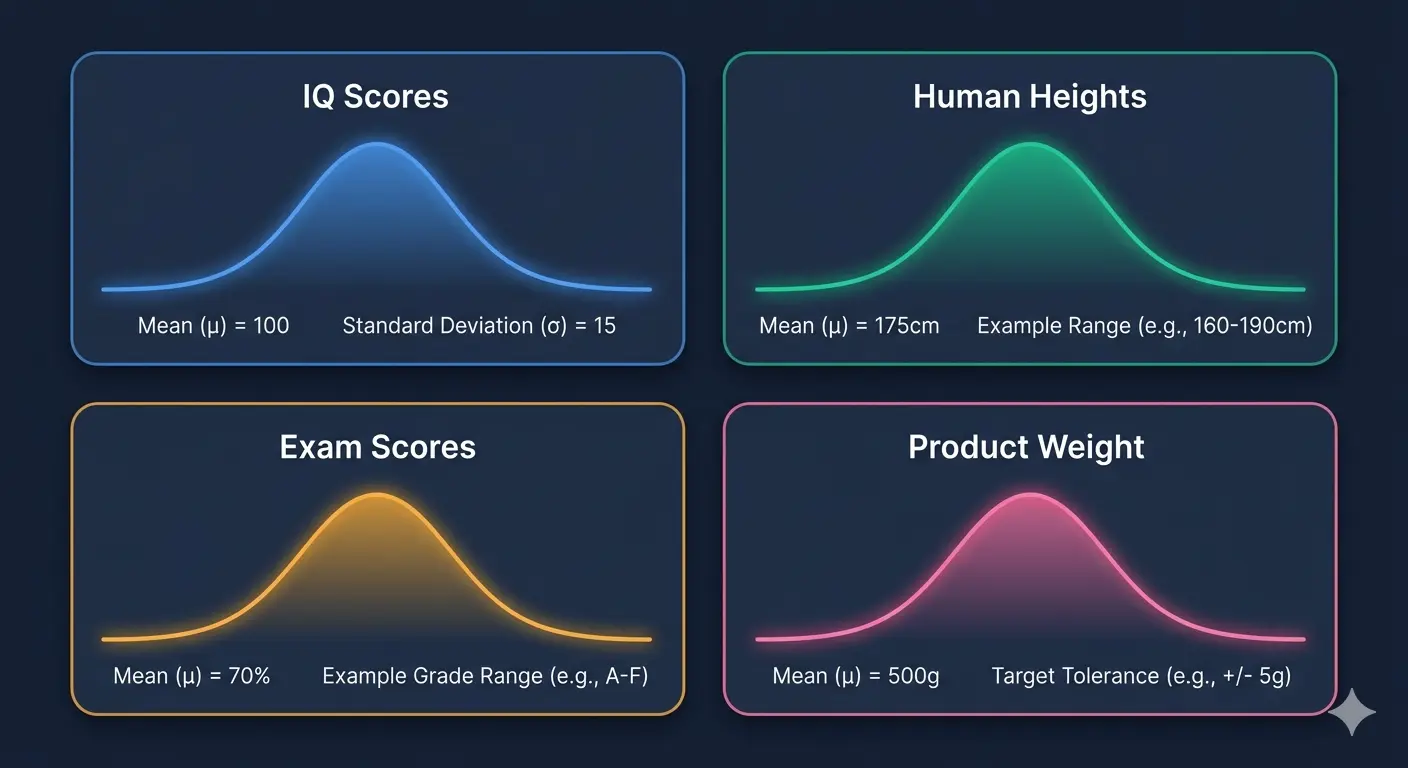

Figure 3: Bell curves for four common real-world datasets - IQ scores (μ=100, σ=15), adult heights (μ=175 cm), exam scores (μ=70%), and product weights (μ=500 g).
| Variable | Approx μ | Approx σ | Application of Bell Curve |
|---|---|---|---|
| Human IQ scores | 100 | 15 | Educational placement; psychometric test design (WAIS, Stanford-Binet) |
| Adult male height (India) | ~165 cm | ~7 cm | Ergonomics (IS 11226); clothing size charts; building design |
| Academic exam scores | Varies | ~10–15% of range | Grade boundaries; percentile ranking; norm-referenced assessment |
| Manufactured part dimensions | Nominal | Process Cp | Six Sigma SPC; IS 919 limits and fits; tolerance stack-up |
| Blood pressure (systolic) | ~120 mmHg | ~12 mmHg | Medical screening; clinical trial endpoints; public health |
| Daily stock returns | ~0% | ~1–2% | Options pricing (Black-Scholes); Value at Risk; portfolio SD |
| Lab / survey measurement errors | 0 (unbiased) | Instrument precision | Least squares estimation; GPS accuracy; spectroscopic uncertainty |
| Tensile strength of steel (IS 456) | Grade UTS | ~20–40 MPa | Structural reliability; fck = mean − 1.645σ (5% exclusion) |
When does the bell curve NOT apply? Income and wealth follow power laws (heavy right skew). Engineering failure times follow Weibull. Extreme floods follow Gumbel. Reaction times follow log-normal. Always test for normality (Shapiro-Wilk, Q-Q plot, Anderson-Darling) before applying normal-distribution methods - assuming normality in heavy-tailed data can severely underestimate the probability of extreme events.
Skewness and Kurtosis: Departures from the Bell Curve
Skewness and kurtosis quantify how much a real-world distribution departs from the ideal symmetric bell - essential diagnostics before applying any normal-distribution method.
Figure 4: Left-skewed (negative skew), symmetric normal bell curve, and right-skewed (positive skew) distributions compared.
| Distribution Type | Skewness | Excess Kurtosis | Shape | Example |
|---|---|---|---|---|
| Normal (Bell Curve) | 0 | 0 | Symmetric, moderate tails | IQ, steel strength, measurement errors |
| Leptokurtic | ~0 | > 0 | Sharp peak, fat tails | Daily financial returns; seismic ground motion |
| Platykurtic | ~0 | < 0 | Flat peak, thin tails | Uniform distribution; some rainfall datasets |
| Right-skewed (positive) | > 0 | Varies | Long right tail | Income distribution; flood magnitudes |
| Left-skewed (negative) | < 0 | Varies | Long left tail | Age at death (developed countries); easy exam scores |
Engineering Applications of the Bell Curve
The normal distribution is the mathematical backbone of engineering quality, reliability, and uncertainty analysis. Below are the most important quantitative applications used in Indian and international practice.
Six Sigma & Quality Control (SPC)
Process variability is assumed normal. Process capability Cp = (USL–LSL)/(6σ). Six Sigma target Cp ≥ 2.0 gives ≤ 3.4 DPMO. IS 397 and IS/ISO 22514 govern SPC in Indian manufacturing.
Structural Reliability (IS 456 Cl. 6.2)
Characteristic strength fck = mean − 1.645σ (5% exclusion). Mean cube strength 30 MPa, σ = 4 MPa → fck = 23.4 MPa, ensuring only 5% of tests fall below the design value.
Measurement Uncertainty (GUM)
Random errors follow a normal distribution. Expanded uncertainty U = k·u(y); k = 2 covers 95.45% of the measurement interval (ISO/IEC Guide 98-3, the international GUM standard).
Hydrological Frequency (IS 5477)
T-year flood Qt = μ + KT·σ where KT is the frequency factor. Log-normal assumption for annual maxima. Used in reservoir capacity and drainage design.
Tolerance Stack-Up Analysis
Assembly gap σ_assembly = √(σ₁²+σ₂²+⋯+σₙ²) by RSS. Gives expected variation and probability of interference for mechanical fits and precision assemblies.
Fatigue Life in Steel (IIW / IS 1024)
Log(N) at constant stress amplitude is approximately normal. S-N design lines at mean ± 2σ cover 97.7% of test specimens (IIW fatigue recommendations, IS 1024).
Signal Processing & Electronics
Thermal (Johnson) noise is normally distributed with zero mean. Bell curve analysis underpins SNR calculation and bit error rate estimation in digital communications.
Seismic Hazard Analysis (IS 1893)
ln(PGA) is normally distributed in ground-motion models. PSHA integrates over all sources to give the PGA exceeded with 10% probability in 50 years - the IS 1893 design basis.
Bell Curve & Normal Distribution Tools - Try These Free Calculators
Understanding the bell curve is far easier when you can interact with it visually and calculate probabilities without manual table lookup. We have built four dedicated free tools - each covering a different aspect of normal distribution work. Use them alongside this guide.
Enter any mean (μ) and standard deviation (σ) to instantly generate an interactive bell curve. Shade probability areas, visualise the 68-95-99.7 bands, and see the curve update in real time - ideal for reports, presentations, and teaching.
Given μ, σ, and a value x, instantly calculate P(X < x), P(X > x), and P(a < X < b) with full step-by-step working. Perfect for Six Sigma defect rate analysis, quality control tolerance checks, and statistics coursework.
Convert any raw score to a Z-score and find its exact percentile rank. Supports both population (σ) and sample (s) standard deviations. Instantly answers: "How many standard deviations from the mean is this value?" - used in exam scoring, medical diagnostics, and hypothesis testing.
Work backwards from a Z-score or percentile to find the original raw score. Given a target percentile (e.g. 95th) and your distribution parameters μ and σ, instantly compute the corresponding x - essential for setting specification limits, grading thresholds, and clinical reference ranges.
Which tool should I use? → Visualise the curve: Graph Generator. → Find probability for a given x: Normal Distribution Calculator. → Convert score to percentile: Z-Score Calculator. → Reverse lookup raw score from percentile: Raw Score Calculator.
Quick Bell Curve Calculator: Z-Score, Probability & Percentile
Normal Distribution Quick Calculator
Enter mean, standard deviation, and an observed value to compute the Z-score, percentile, and interval probability. For a full visual chart, use our Normal Distribution Graph Generator →
Need full working shown? Try our Normal Distribution Calculator | Z-Score Calculator | Raw Score Calculator
Frequently Asked Questions About the Bell Curve
1. What is a bell curve in simple terms?
A bell curve is a graph showing how data values distribute around a central average. It looks like a symmetric bell - high in the middle (the mean) and tapering equally on both sides. Formally it is the graphical representation of the normal distribution, f(x) = (1/σ√(2π)) × e^(−(x−μ)²/(2σ²)). In everyday language: plot the heights of 10,000 adults and you will see a bell curve - most people cluster around the average height, with fewer people at very short or very tall extremes. Use our Normal Distribution Graph Generator to visualise it with your own numbers.
2. What does the bell curve tell us?
The bell curve tells you three main things: (1) Where data is centred - the peak equals the mean, median, and mode simultaneously. (2) How spread out data is - a narrow tall bell means low variability (small σ); a wide flat bell means high variability. (3) What proportion of data falls within any range - via the empirical rule: 68% within ±1σ, 95% within ±2σ, 99.7% within ±3σ. This makes it the foundation for quality tolerances, grade boundaries, medical reference ranges, and structural reliability targets.
3. What are the best real-world examples of a bell curve?
The most well-known examples include: IQ scores (mean 100, SD 15 - 68% of people score between 85 and 115); adult heights within a demographic; scores on well-designed standardised exams; machined part dimensions (small independent errors sum to a normal distribution of final sizes per the Central Limit Theorem); random measurement errors in laboratory instruments; blood pressure readings in a healthy population; and crop yields per unit area under uniform conditions.
4. What is the bell curve formula?
The bell curve equation is the normal distribution PDF: f(x) = (1/(σ√(2π))) × e^(−(x−μ)²/(2σ²)). Here μ is the mean (locates the peak), σ is the standard deviation (controls width), e ≈ 2.71828 is Euler's number. The term 1/(σ√(2π)) normalises the curve so total area = 1. To find probability over an interval [a,b], integrate f(x) from a to b - this equals Φ((b−μ)/σ) − Φ((a−μ)/σ), where Φ is the cumulative normal function. Use our Normal Distribution Calculator for instant results without manual integration.
5. How do you calculate a Z-score and find percentile?
Z-score formula: z = (x − μ) / σ. Example: average exam score μ = 70, σ = 10, student scores x = 85 → z = (85−70)/10 = 1.5. This means the student is 1.5 standard deviations above the mean. To find the percentile, look up z = 1.5 in the Z-table: P(Z < 1.5) = 0.9332 - approximately the 93rd percentile. Use our Z-Score Calculator for instant lookup. To reverse the process (find x from a target percentile), use our Raw Score Calculator.
6. What is the 68-95-99.7 rule?
The empirical rule states: 68.27% of values fall within ±1σ of the mean; 95.45% fall within ±2σ; 99.73% fall within ±3σ. Only about 1 in 370 observations lies beyond 3σ, and only 1 in 15,787 beyond 4σ. In quality control (Six Sigma): achieving ±6σ within tolerance limits reduces the defect rate to approximately 3.4 parts per million - the gold standard for manufacturing quality.
7. Can a bell curve be skewed?
No - by definition a true bell curve (normal distribution) has zero skewness because it is perfectly symmetric. What people call a "skewed bell curve" is actually a different distribution: log-normal, Gamma, Weibull, etc. Real-world data is rarely perfectly normal. Always test for normality (Shapiro-Wilk, Jarque-Bera, Q-Q plot) before applying normal-distribution methods - mistakenly assuming normality in heavy-tailed data can severely underestimate the probability of extreme events.
8. What is the total area under a bell curve?
The total area under the entire bell curve always equals exactly 1 (100%) - a requirement for any probability density function. For any interval [a,b], the area under the curve equals P(a ≤ X ≤ b). This is computed via Z-tables or software (NORM.DIST in Excel, scipy.stats.norm.cdf in Python). Key areas: μ−σ to μ+σ = 68.27%; μ−2σ to μ+2σ = 95.45%; −∞ to μ = 50% (left half = right half due to symmetry). Use our Normal Distribution Calculator for any area.
9. How is the bell curve used in grading exams?
"Grading on a curve" adjusts exam scores so they follow an approximately normal distribution. In strict implementation: set class mean to a target grade, then ±0.5σ = C, +0.5σ to +1.5σ = B, above +1.5σ = A, and symmetrically D and F. Modern universities prefer criterion-referenced grading (absolute cut-offs), using bell curve adjustments only when an exam was clearly too difficult. In norm-referenced standardised tests (SAT, GRE, UPSC), scaled scores are designed so the full cohort follows a bell curve.
10. How do engineers use the bell curve for material strength and reliability?
Engineers define characteristic strength using the normal distribution. For concrete (IS 456 Clause 6.2.1): fck = mean − 1.645σ (5% exclusion - only 5% of tests fall below fck). For steel (IS 2062): minimum guaranteed yield at 95% confidence. In structural reliability: probability of failure Pf = P(R < S) = Φ(−β) where β is the reliability index. Indian codes target β ≈ 3.5 for ultimate limit states (Pf ≈ 1 in 4,300). Our Normal Distribution Calculator can compute these tail probabilities directly.
Key References
Gauss, C.F. (1809). Theoria Motus Corporum Coelestium. Perthes and Besser, Hamburg.
De Moivre, A. (1756). The Doctrine of Chances, 3rd ed. Millar, London.
Laplace, P.S. (1812). Théorie Analytique des Probabilités. Courcier, Paris.
Fisher, R.A. (1925). Statistical Methods for Research Workers. Oliver and Boyd, Edinburgh.
Montgomery, D.C. (2020). Introduction to Statistical Quality Control, 8th ed. Wiley, New York.
BIS (2000). IS 456: Plain and Reinforced Concrete - Code of Practice (4th revision). Bureau of Indian Standards. Clause 6.2.1: characteristic strength definition using normal distribution.
JCGM (2008). Evaluation of Measurement Data - Guide to the Expression of Uncertainty in Measurement (GUM). Joint Committee for Guides in Metrology.
Ang, A.H-S. and Tang, W.H. (2007). Probability Concepts in Engineering, 2nd ed. Wiley, New York.
